Fire Detection System Solutions
Fire Detection system System Solutions
At Scube Tech Services, we specialize in designing, supplying, installing, testing, and commissioning advanced Fire Alarm Systems that ensure life safety, asset protection, and regulatory compliance for commercial, industrial, and residential infrastructure.
Our fire alarm solutions are customized based on the type, size, and complexity of the premises, offering both Conventional and Addressable Fire Alarm Systems integrated with the latest detection technologies and intuitive user interfaces.
Conventional Fire Alarm Systems
Conventional systems are ideal for small to medium-sized buildings. These systems divide the building into multiple zones, and each zone is connected to detectors or manual call points. When a device is triggered, the control panel identifies the zone, helping responders locate the fire quickly.
Cost-effective and simple to install
Zone-wise fire location indication
Suitable for small offices, shops, and standalone buildings
Devices Used
- Smoke Detectors (Ionization, Photoelectric)
- Heat Detectors (Fixed Temperature & Rate-of-Rise)
- Manual Call Points (Break Glass Units)
- Manual Call Points (Break Glass Units)
- Conventional Fire Alarm Control Panel
- Hooters/Sounders
- Fire Alarm Cables
- Zone Monitor Modules (for interfacing)
Fire Alarm Control PanelPanel
- The brains of the system
- Provides power to the system, monitors inputs and controls outputs through various circuits.
- Performs other functions as required by the appropriate code.
Addressable Fire Alarm System
Every device connected to the addressable system has its own unique address. When a fire is detected, the device’s address shows up on the main control panel, telling us exactly which device has been activated. This will enable us to find the exact location of a fire and extinguish it quickly.
- Each device (detector, pull station…) has a unique number assigned to it called the address for reporting alarms and troubles.
- Employs a Signaling Line Circuit (SLC) Loop along which all addressable input and output devices are connected to the fire alarm control panel.
- Addressable devices transmit an electronic message back to the Control Unit representing their state (Normal, Alarm, Trouble) when polled by the Control Unit.
Conventional Fire Alarm System
With a conventional system, there is no way of pinpointing the exact location of the fire. By wiring your building into different zones, one can get a general idea of where the fire is. For instance, if you have two floors, you could wire the first as ‘zone and the second as zone 2. So, if a fire occurs in zone 1, you know that the fire is somewhere on the first floor.
- The simplest type of control unit. Generally, a single circuit board contains a power supply, control, initiating and notification circuitry.
- Some models use auxiliary circuit boards to perform special functions.
- Input/output devices connect to dedicated circuits.
- Designated outputs occur when initiating signals are received.
- Limited special functions and capabilities.
Input Device
A fire alarm system can have a variety of input devices. We divide it into two parts, one is Initiating Device and one is Initiating Device Circuit (IDC). A system component that originates transmission of a change of state condition, such as a smoke detector, manual fire alarm box, supervisory switch, etc is known as Initiating Device. A circuit to which automatic or manual initiating devices are connected where the signal received does not identify the individual device operated is known as a Initiating Device Circuit (IDC)
Input Device
Fire Alarm Hooter
The Fire Alarm Hooter is a device which produces sound when a sensor senses any kind of fire activity.
Horns
Loud and distinctive output. Often used in high-noise environments. such as manufacturing plants
Control Module
They is the output side. It activates warning devices like a bell or horn strobe.

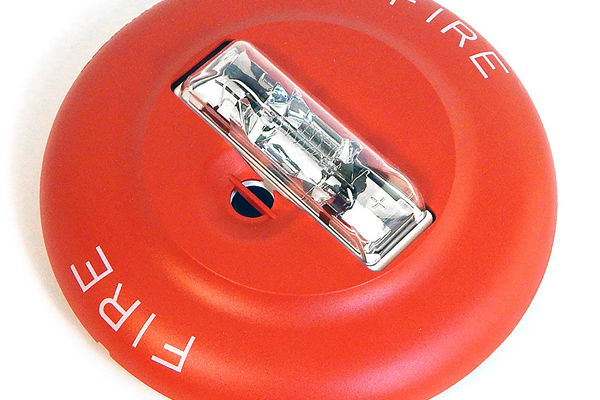

Horns Strain
Visual signalling appliances are used in high-noise environments, in areas occupied by hearing-impaired.

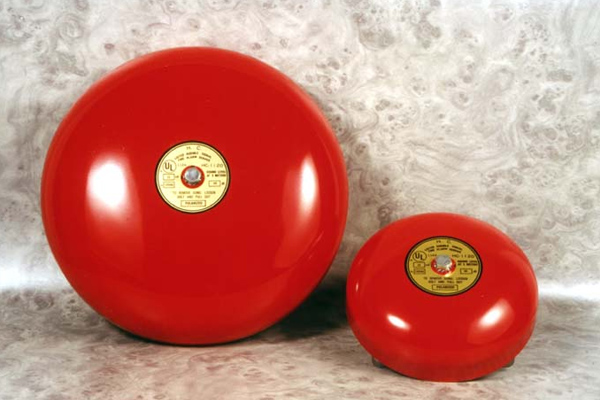

Bells
Only used if they are only for fire, or have a distinctive sound from other bell signalling devices.
Addressable Fire
Alarm Systems
Addressable systems are intelligent systems that offer pinpoint accuracy and control, making them suitable for complex infrastructure such as commercial towers, hospitals, malls, hotels, and industrial facilities.
Each device has a unique address, enabling the system to identify the exact location of a fire or fault, allowing quick and accurate response.
Key Features
- High scalability and flexibility
- Device-level monitoring and control
- Real-time diagnostics and logging
- Easy integration with BMS, HVAC, PA, Sprinkler, and Access Control systems
- Compliant with NFPA, IS, and international fire safety standards
Devices Used
- Addressable Smoke and Heat Detectors
- Multi-Sensor Detectors
- Addressable Manual Call Points
- Intelligent Control Panels (1-loop to multi-loop)
- Addressable Hooters with Flasher
- Loop Isolators
- Repeater Panels (for multi-building or high-rise towers)
Integration Capabilities
Scube Tech Services specializes in integrating Fire Alarm Systems with :
- Building Management System (BMS)
- Public Address/Voice Evacuation Systems
- Sprinkler and Fire Suppression Systems
- Access Control & Emergency Lighting Systems
Value-added Services
- Site Survey & Risk Assessment
- System Design and BOQ Preparation
- Installation & Wiring by Certified Technicians
- Testing, Commissioning, and AMC
- Fire NOC Documentation Assistance
- Client Training & System Handover
Our Strengths
- 10+ years of domain expertise
- Collaboration with top OEMs like Honeywell, Siemens, Ravel, GST, Agni, etc
- Project execution in IT Parks, Hotels, Hospitals, Warehouses, and Data Centers
- End-to-end compliance with IS2189 and NFPA codes
Typical Applications
- Corporate Buildings & Commercial Complexes
- Industrial Warehouses and Manufacturing Plants
- Educational Institutes & Hospitals
- High-rise Residential Societies
